Selected Work

AI and automation, applied to real 3DEXPERIENCE & CATIA workflows

Project details below are described generically to respect client confidentiality — no client names, tenant IDs, or internal documents are shown. What's real is the architecture and the results.

Case Study

An automated design-to-build pipeline for mass timber construction

The Challenge

A mass timber manufacturer's engineering process depended on someone manually noticing when a building specification was approved, then manually rebuilding structural and envelope models in CATIA to match. Every revision meant repeating that manual handoff — slow, and an easy place for models to drift out of sync with the approved spec.

What I Built

An orchestration layer that watches the specification document's approval state directly in the PLM platform. The moment a spec is approved, it automatically launches multiple CATIA sessions in parallel — one building the structural model, another building the building envelope — each driven off a shared, versioned build plan so the two stay consistent with each other and with the approved spec.

Isometric render of a 12-storey S-shaped mass timber structural model

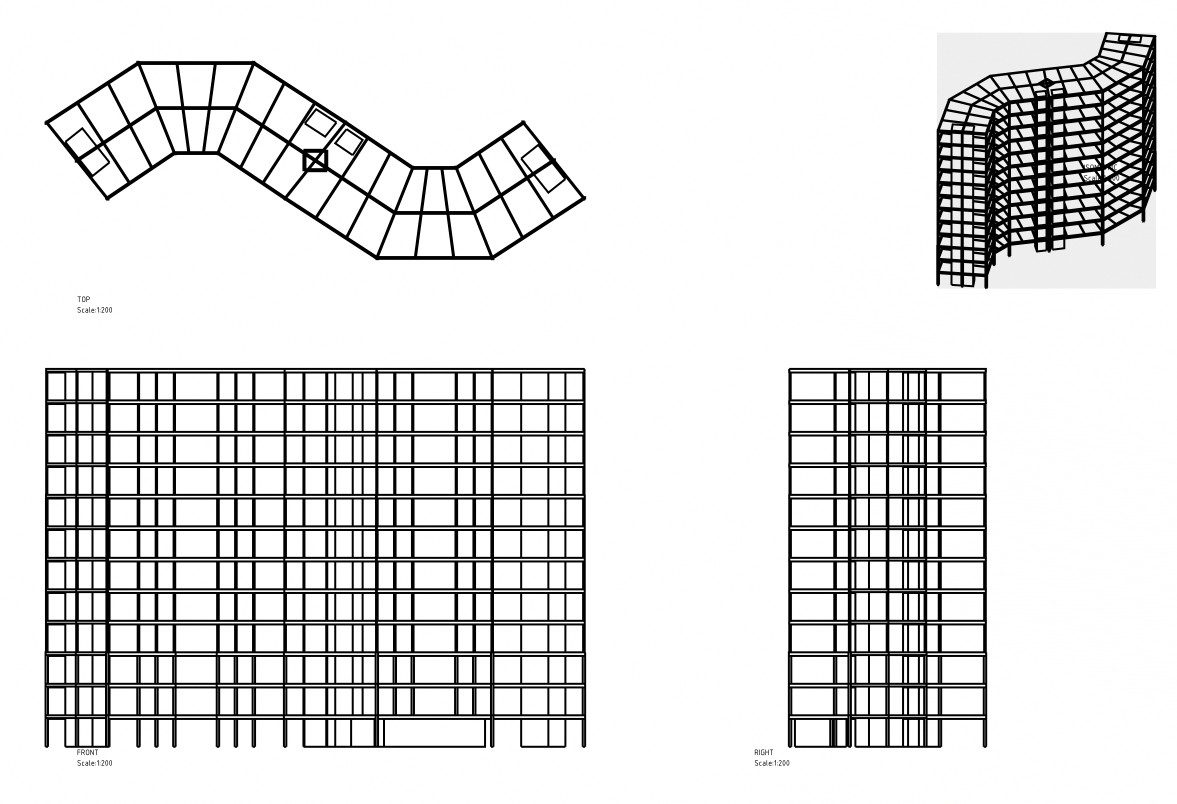

CAD drawing sheet with plan and elevation views of the S-shaped structure

The Result

What used to require manual monitoring and rebuild work now runs unattended: approval to updated CAD model with no human in the loop, and structure/envelope models that are guaranteed to be built from the same approved source of truth.

Case Study

Reconciling BIM data from IFC models and architect drawings for CAD automation

The Challenge

Automating CAD generation from BIM data only works if the underlying geometry is trustworthy. IFC models are dimensionally authoritative but not always fully labelled; architect PDF drawings carry the labels and callouts engineers rely on, but their coordinates don't always agree with the model. Feeding either source into automation on its own produced grids, footprints, and section markers that didn't line up.

What I Built

A reconciliation pipeline that treats the IFC model as the geometric source of truth and the PDF as the labelling source of truth. Matched elements become anchor points; unmatched PDF-only geometry is mathematically rebased onto the IFC coordinate frame between the nearest anchors, so architect intent is preserved without breaking dimensional accuracy. The same pipeline extracts a full mounting-context footprint per building storey — panels, walls, and substructure, each classified by material and structural role — so downstream automation knows what's allowed to mount to what.

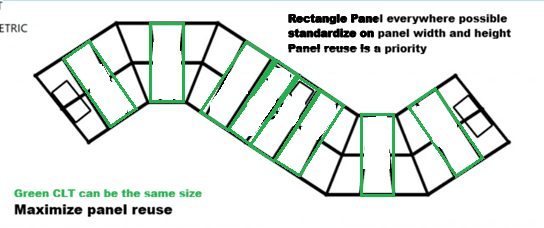

Diagram showing CLT panel reuse strategy on an S-shaped floor plan

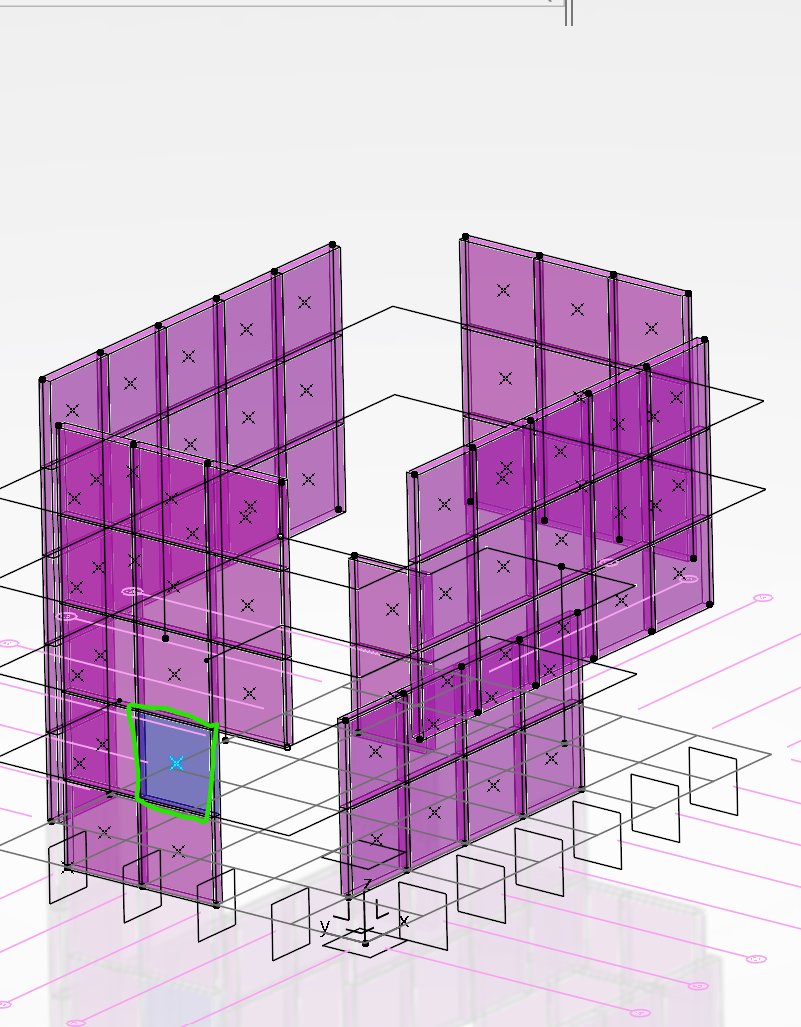

3D render of a panelized facade with one panel highlighted

The Result

Consistent, labelled building grids and footprints feed directly into CATIA automation, removing a step that previously required an engineer to manually cross-reference drawings against the model by hand.

Case Study

PLM process automation at scale

The Challenge

Beyond CAD, PLM teams lose time to repetitive administrative work inside the platform itself: creating dozens of tasks by hand from a project plan, duplicating structured objects (parts, buildings, assemblies) one at a time through the UI, and manually reading and highlighting incoming documents for review.

What I Built

A set of headless automations against the PLM platform's REST APIs — no CAD session required. Bulk task creation from a spreadsheet in one pass. Type-agnostic object duplication that works against any duplicatable reference in the system. Automated document review that reads incoming files and highlights the specific spans a reviewer actually needs to evaluate.
